Finition |
740 | 740 | 750 | 750 |
Année |
2016 | 2019 | 2017 | 2018 |

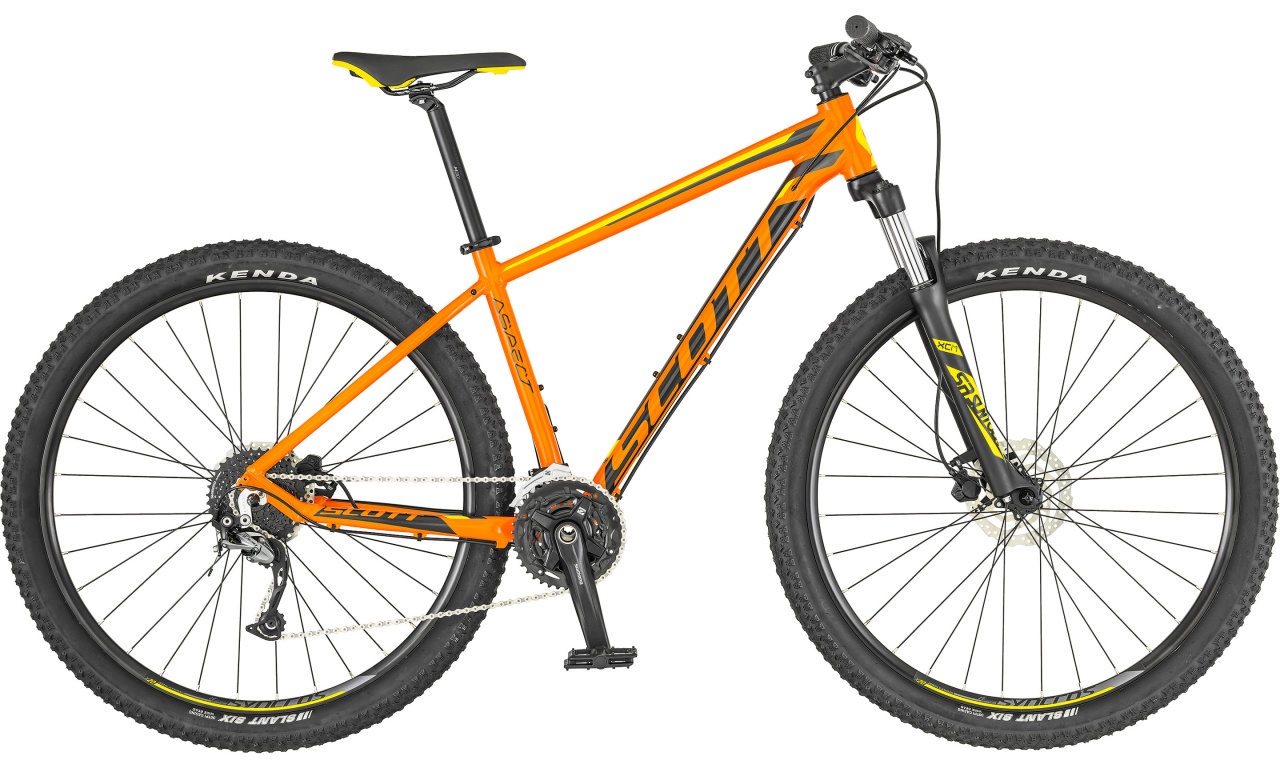

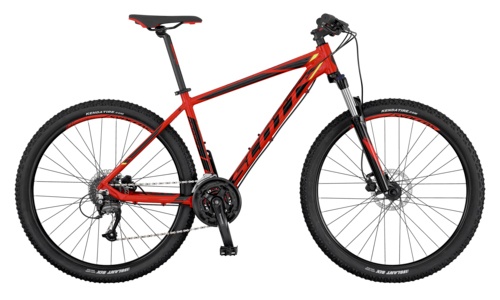

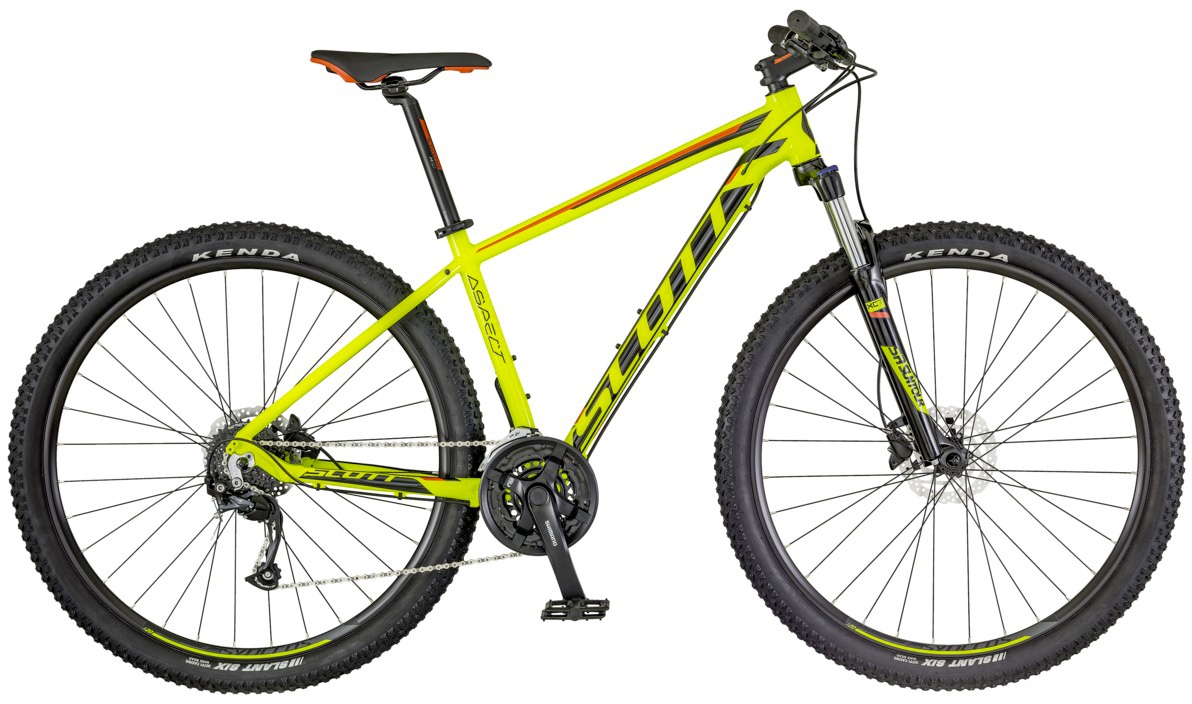

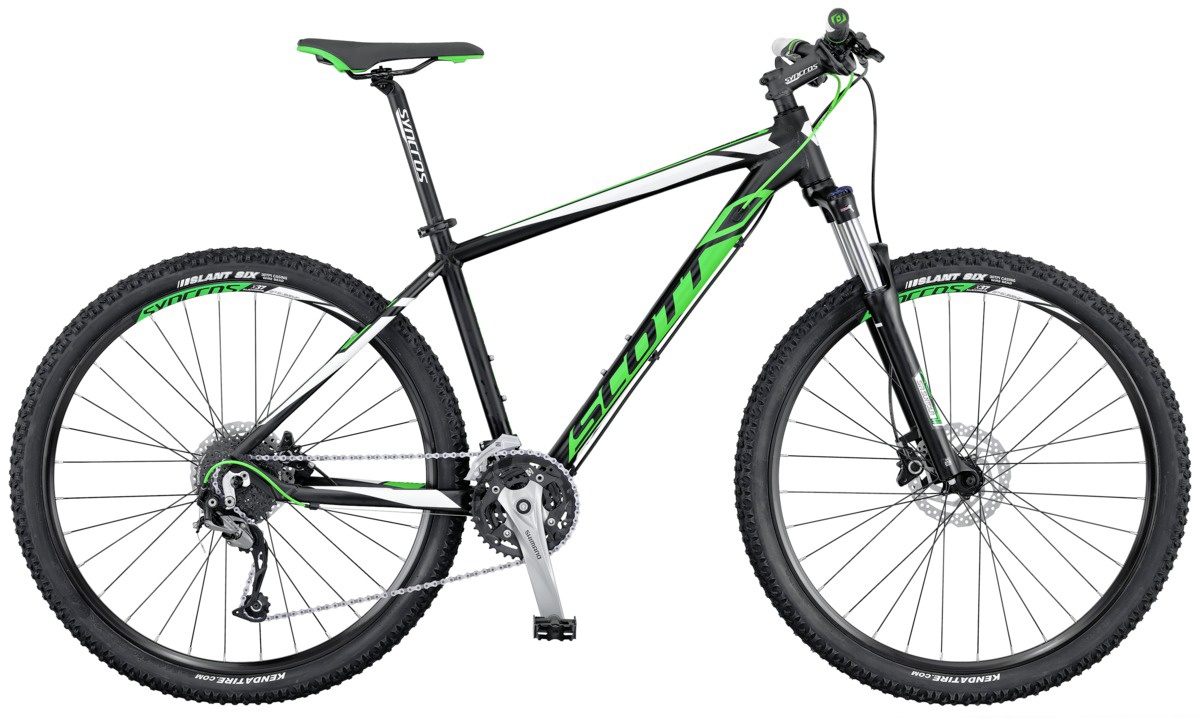

Photo |
|
|
|
|
Tailles / poids | L, M, S, XL, XS | L (14,02 kg), M (14,02 kg), S (14,02 kg), XL (14,02 kg), XS (14,02 kg)
Matériau | Aluminium | Aluminium | Aluminium | Aluminium |
Cadre | Aspect 700 series#Alloy 6061#Performance geometry#Internal cable routing | Cadre en aluminium Aspect 700/900 | Aspect 700/900 series#Alloy 6061 DB / Performance geometry#Internal cable routing | Aspect 700/900 series Alloy 6061 DB / Performance geometry Internal cable routing |
Fourche | Suntour XCM-HLO 27.5 | Fourche Suntour XCM-HLO 100 mm | Suntour XCT-HLO#Hyd. Lockout / 100mm travel | Suntour XCT-HLO Hyd. Lockout / 100mm travel |
Potence | Syncros M3.0#HL-D507A | | Syncros M3.0 / 7° / Black | |
Cintre | Syncros M3.0#720mm, black, 31.8mm#12mm rise 9° | | Syncros M3.0 / 720mm#black / 31,8mm / 12mm rise / 9° BS | |
Freins | Shimano BR-M355#Hydr. Disc#160F/160Rmm SM-RT20 CL Rotor | Freins Shimano | Tektro SCH-F17 / Hydr. Disc#160F/160R Rotor | Shimano BR-M315 / Hydr. Disc SM-RT10 CL Rotor / 160F/160R |
Commande | Shimano SL-M370-9R#R-fire plus | Shimano BR-MT200 / Hydr. Disc SM-RT10 CL Rotor / 160F/160R | Shimano SL-M310-8R#R-fire plus | |
Dérailleur AR | Shimano Alivio RD-M4000#27 Speed | Shimano Alivio RD-M4000 27 Speed | Shimano Altus RD-M370#24 Speed | Shimano Altus RD-M2000 24 Speed |
Dérailleur AV | Shimano FD-M3000 / 31.8mm | Shimano FD-M3000 / 31.8mm | Shimano FD-TY700-TS6 / 31.8mm | Shimano FD-TY700-TS6 / 31.8mm |
Pédalier / guide chaine | Shimano FC-M3000#40x30x22 | Shimano FC-MT210 2-piece Design / 40X30X22 | Shimano FC-TY701#42x34x24 w/CG | |
Chaine | KMC X9 | | KMC Z7 | |
Cassette | Shimano CS-HG200-9#11-34 T | Shimano CS-HG200-9 / 11-34T | Shimano CS-HG31-8 / 11-32T | |
Jantes | Syncros X-37 Disc#32H, black | Shimano HB TX505; Shimano FH-TX5058; 14 G / stainless / black; Syncros X-20 Disc 32H / black | Syncros X-20 Disc#32H / black | |
Moyeux | Formula CL51 | | Formula DC-25 RQR disc | |
Pneus | Kenda Slant 6#27.5x2.1 / 30TPI | | Kenda Slant 6#2.1 / 30TPI | |
Tige de selle | Syncros M3.0, 27.2mm | | Syncros M3.0#27.2mm / 350mm / Black | |
Selle | Syncros M2.5 | | Syncros M3.0 | |
